Focusun 0.5T Fresh water flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：0.5T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Water source：fresh water

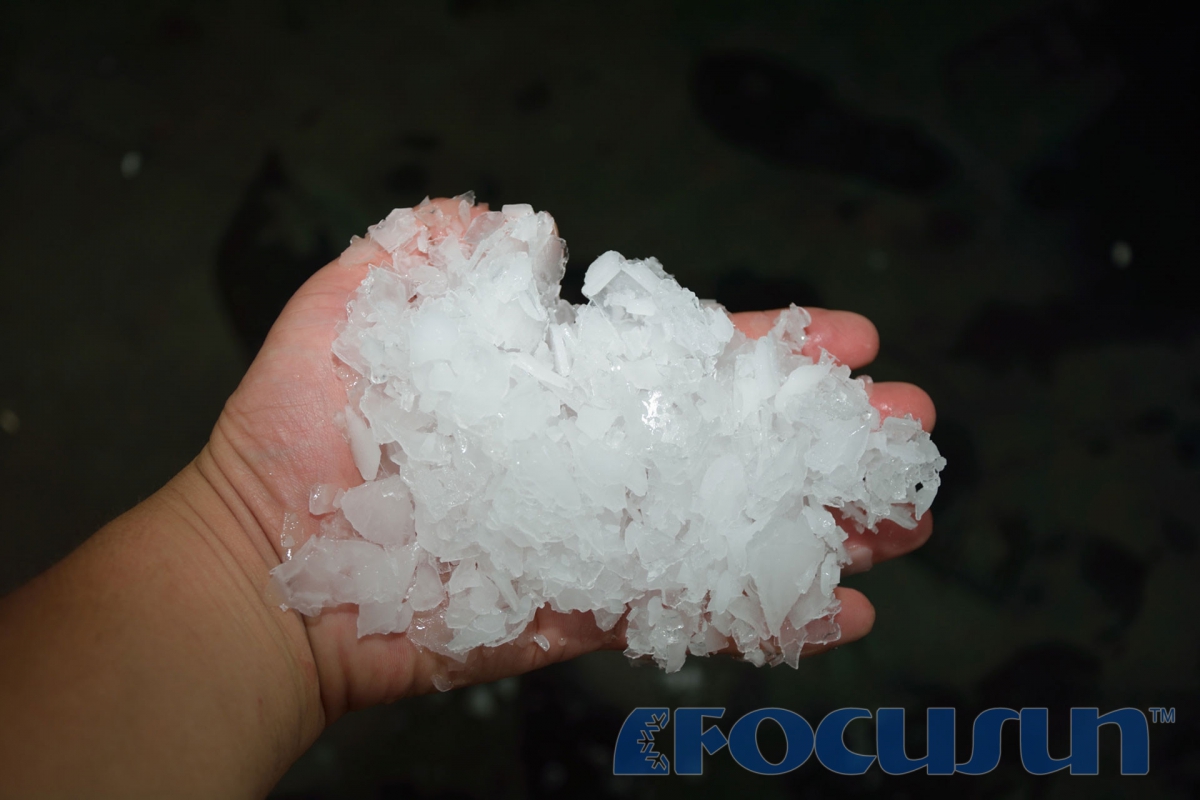

Flake ice features：The thin ice has advantages of large contact area and fast cooling speed, is easy to crush and mold.
Application：Supermarket fresh table display preservation; meat processing industry; food processing industry; aquatic product processing industry.
Technical parameters：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 2.555 |
| Operating power of reducer | Kw | 0.18 | |
| Operating power of cold water pump | Kw | 0.025 | |
| Capacity/stock | Capacity | 500 | |
| Capacity of ice bin | Kg | 400 | |
| Compressor | Manufacturer | Tecumseh | |
| Refrigeration capacity | Kw | 3 | |
| Operating power | Kw | 2 | |
| Compressor COP/EER | Kw/kw | 1.5 | |
| Horse power | Hp | 2 | |
| Condenser | Fan power | Kw | 0.35 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1200×740×590 |
| Size of ice bin | (L×W×H)(mm) | 1200×1000×1050 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of flake ice maker | Kg | 208 |
| Operating weight of ice bin | Kg | 450 | |
| Water supply pressure requirement | Bar | 1 | |
