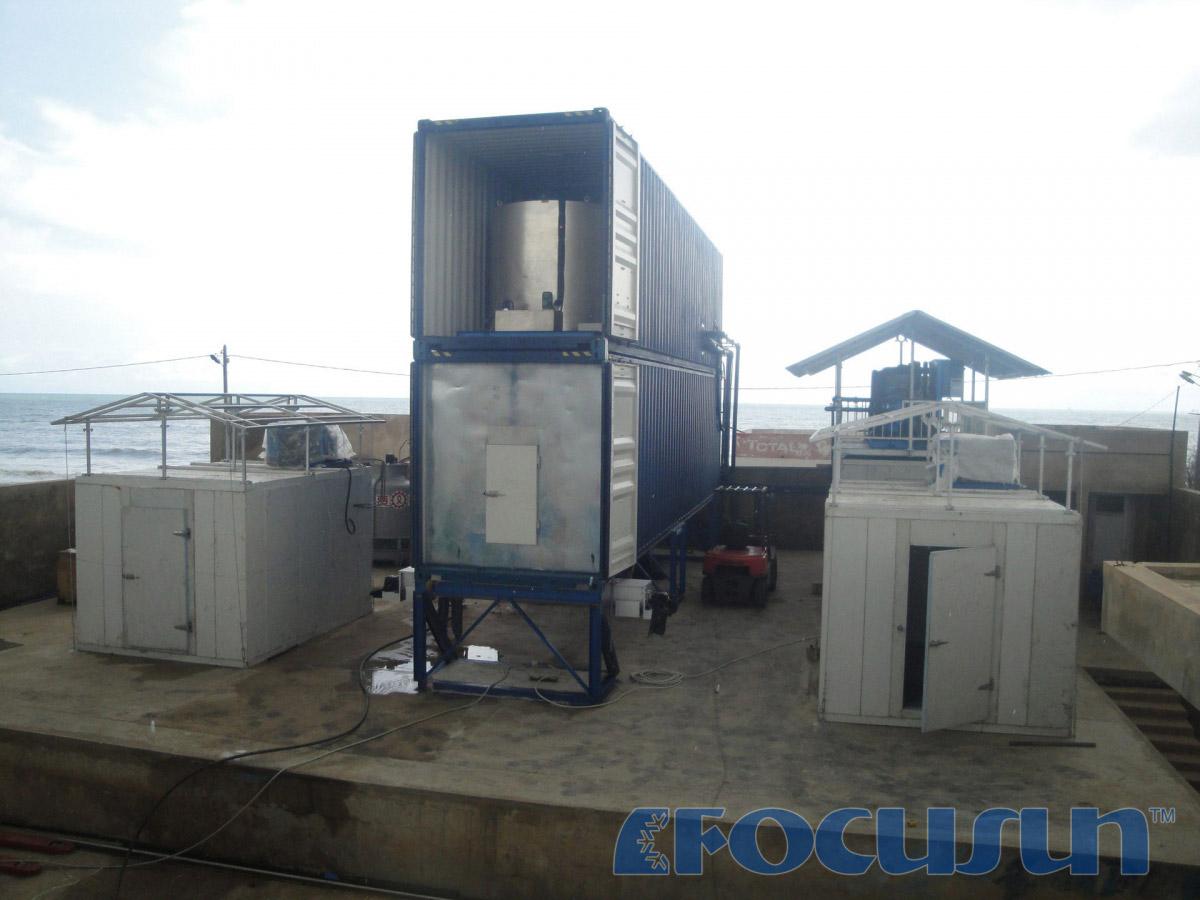

Focusun 40T Containerized flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：40T
Voltage：380V/3P/50hz
Refrigerant：R22/R404a
Water source：fresh water/sea water
Containerized type：40ft
Flake ice feature：The thin ice has advantages of large contact area and fast cooling speed, is easy to crush and mold.
Application：Meat processing industry; food processing industry; aquatic product processing industry
System solution：Automatic ice storage room，ice delivery system，water chilling machine，flake ice compactor
Feature
Integrated refrigeration equipment；
Easy to move and transport, ice can be made anytime and anywhere；
Simple operation and convenient maintenance；
Adopt the brand-new container according with ISO standard, the quality is reliable.
Technical parameter：
| Item | Unit | Parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R404A | ||
| Capacity | kg/24h | 40000 | |
| Cooling Way | Water Cooling | ||
| Temperature | Ambient Temperature | ℃ | 35 |
| Water Temperature | ℃ | 20 | |

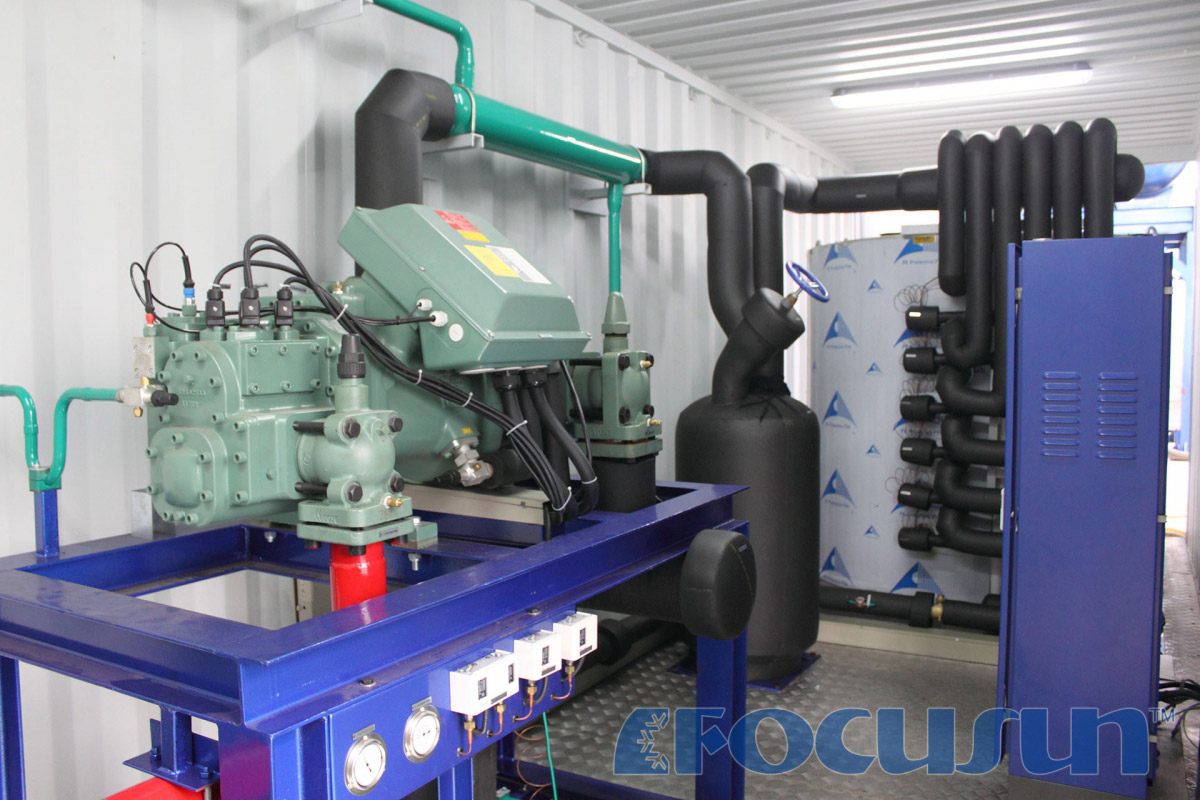

| Compressor | Manufacturer | Bitzer/Carrier | |
| Refrigeration Power | kw | 230 | |
| Operating Power | kw | 133.2 | |
| Compressor COP/EER | kw/kw | 1.73 | |
| Horse Power | hp | 125×2types | |
| Operating power | Total running power | kw | 147.35 |
| Installation Power | kw | 180 | |
| Power of Reducer | kw | 2.2 | |
| Power of Cold Water Pump | kw | 0.75 | |
| Cooling Water Pump | kw | 7.5 | |
| Fan of Cooling Tower | kw | 3.7 | |
| Dimension | Size of Ice Maker | L×W×H(mm) | Unit: 2800×2200×2200 |
| Evaporator: 2800×2400×3600 | |||
| Size of Cooling Tower | L×W×H(mm) | ￠3300×2785 | |
| Size of Cooling Water Pipes | 1" | ||
| Size of Feeding Pipe | 5" | ||
| Size of Water Feeding Pipes of Cooling Tower | 1" | ||
| Size of Ice Outlet | mm | ￠2160 | |
| Weight | Operating Weight of Flake Ice Maker | kg | Unit: 3000 |
| Weight of Container | kg | 3800 | |
| Water Supply Pressure Requirement | bar | 1~6 | |
