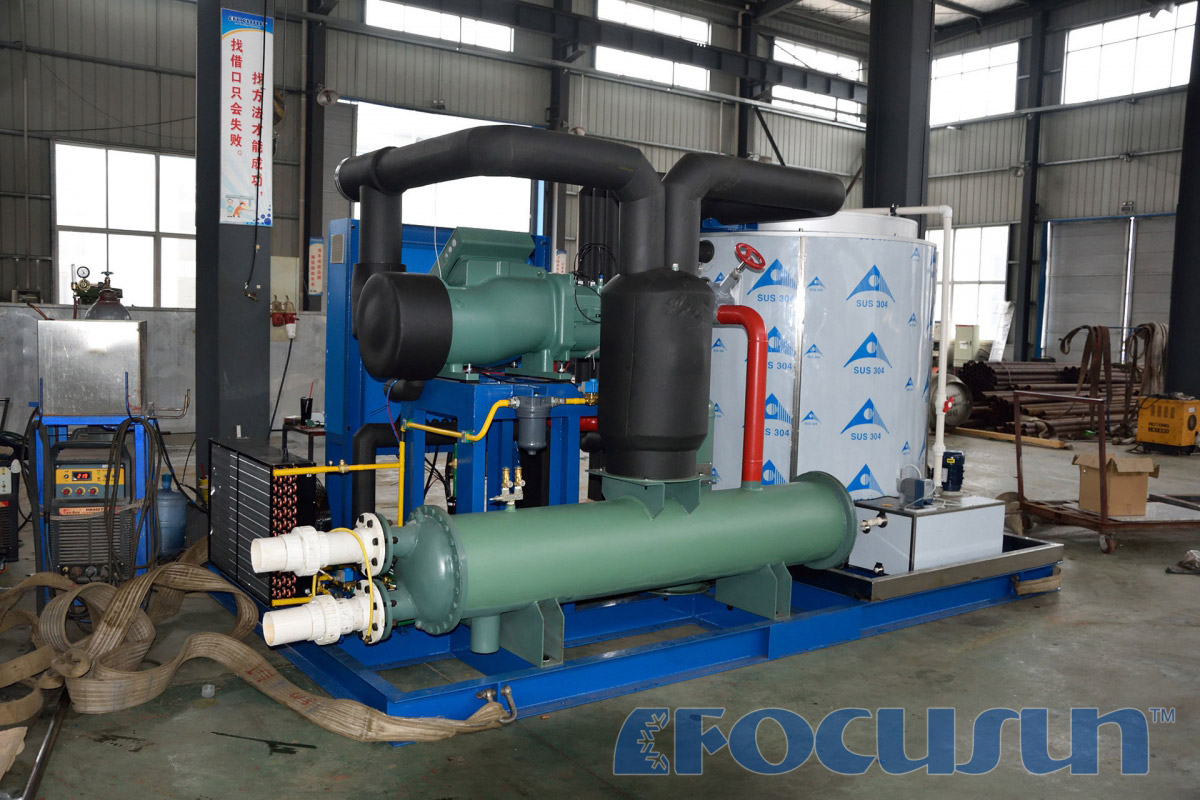

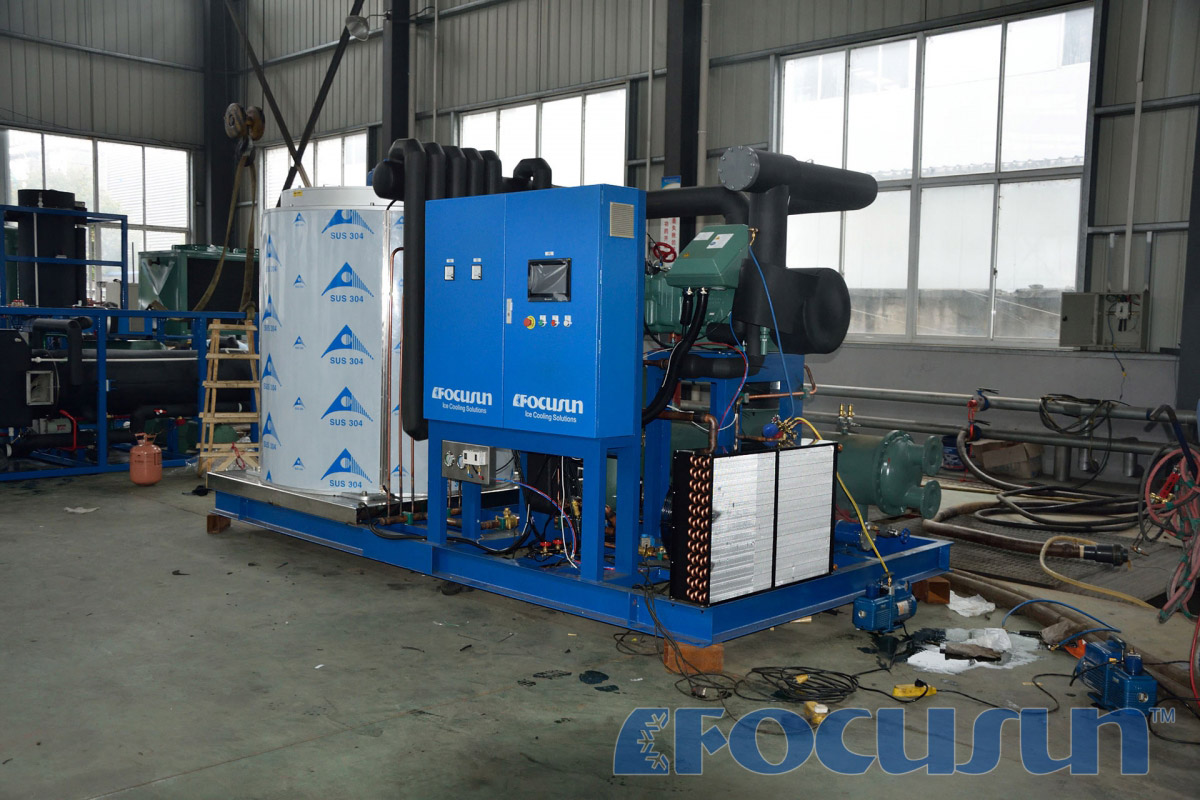

Focusun 35T Fresh water flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：35T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling/evaporative cooling
Refrigerant：R22/R404a
Water source：fresh water
Container：40ft
Flake ice features：The thin ice has advantages of large contact area and fast cooling speed, is easy to crush and mold.
Application：Aquatic product preservation, industrial ice storage, artificial skiing ground, chemical plant reactor cooling, concrete cooling, etc.
System solutions：rake ice storage room，water chilling machine，flake ice compactor
Features：
Low investment, and low operational cost；
Environmentally friendly，energy saving and highly efficient；
Full automatic design, accurate design and low fault rate；
The environment-friendly design decreases energy waste and greenhouse gas emission(A21E)；
Excellent sales service and strong technical support.
Technical parameter：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 35000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 198 | |
| Total running power | Kw | 101.2 | |
| Compressor COP/EER | Kw/kw | 1.94 | |
| Horse power | Hp | 75×2 sets | |
| Operating power | Total running power | Kw | 115.35 |
| Installment power | Kw | 140 | |
| Operating power of reducer | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Cooling water pump | Kw | 7.5 | |
| Fan of cooling tower | Kw | 3.7 | |
| Diemnsion | Size of ice maker | (L×W×H)(mm) | Unit:2800×2200×2200 |
| Evaporator:2400×2000×3200 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ3300×2785 | |
| Size of water feeding pipes of cooling tower | 1" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1" | ||
| Size of ice outlet | mm | Φ2160 | |
| Weight of unit | Operating weight of flake ice maker | Kg | Unit:2800 |
| Evaporator:4600 | |||
| Operating weight of cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1.5 | |
