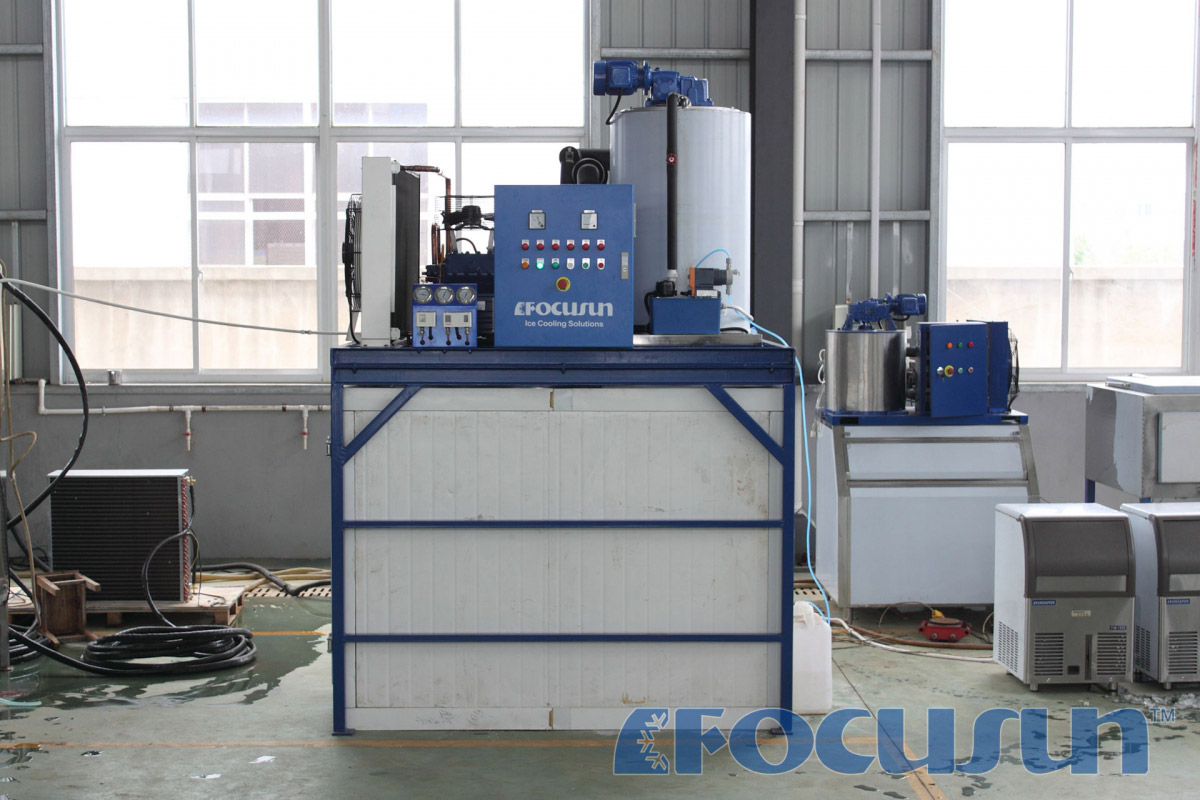

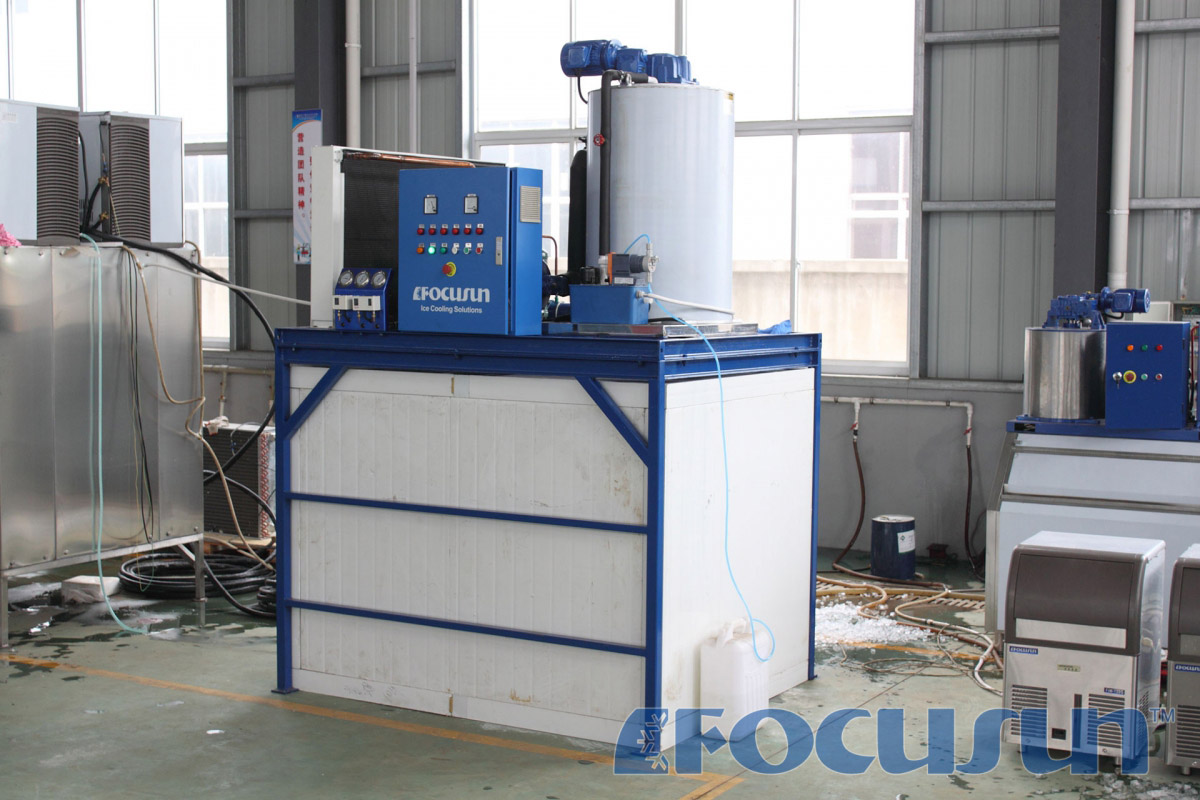

Focusun 5T Land seawater flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：5T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Water source：sea water
Container：20ft
Flake ice feature：Salt content is higher than fresh water flake ice machine.
Application：Coastal areas use on land.
System solutions：Ice storage room, water chilling machine, flake ice compactor
Features：
Use sea water to make ice，so the salt content of flake ice is higher than fresh water flake ice machine；
Pipes use special anti-corrosion materials to meet the requirements of seawater ice making；
Use seawater condenser, es durable；
All parts are welded and connected for compact construction for easy installation and transport.
Technical parameter：
| Item | Unit | Parameter | |
| Refrigerant | R404A | ||
| Capacity | kg/24h | 5000 | |
| Cooling Way | Water Cooling | ||
| Temperature | Ambient Temperature | ℃ | 35 |
| Water Temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer/Carrier | |
| Refrigeration Power | kw | 31.5 | |
| Operating Power | kw | 17.57 | |
| Compressor COP/EER | kw | 1.8 | |
| Horse Power | hp | 25 | |
| Operating power | Total running power | kw | 21.8 |
| Installation Power | kw | 22.22 | |
| Power of Reducer | kw | 0.37 | |
| Power of Cold Water Pump | kw | 0.18 | |
| Cooling Water Pump | kw | 0.75 | |
| Dimension | Size of Ice Maker | L×W×H(mm) | 2200×1050×1550 |
| Size of Feeding Pipe | 1/2" | ||
| Size of Ice Outlet | mm | ￠2160 | |
| Weight of Unit | Weight of Flake Ice Maker | kg | 1120 |
| Water Supply Pressure Requirement | bar | 1~6 | |
