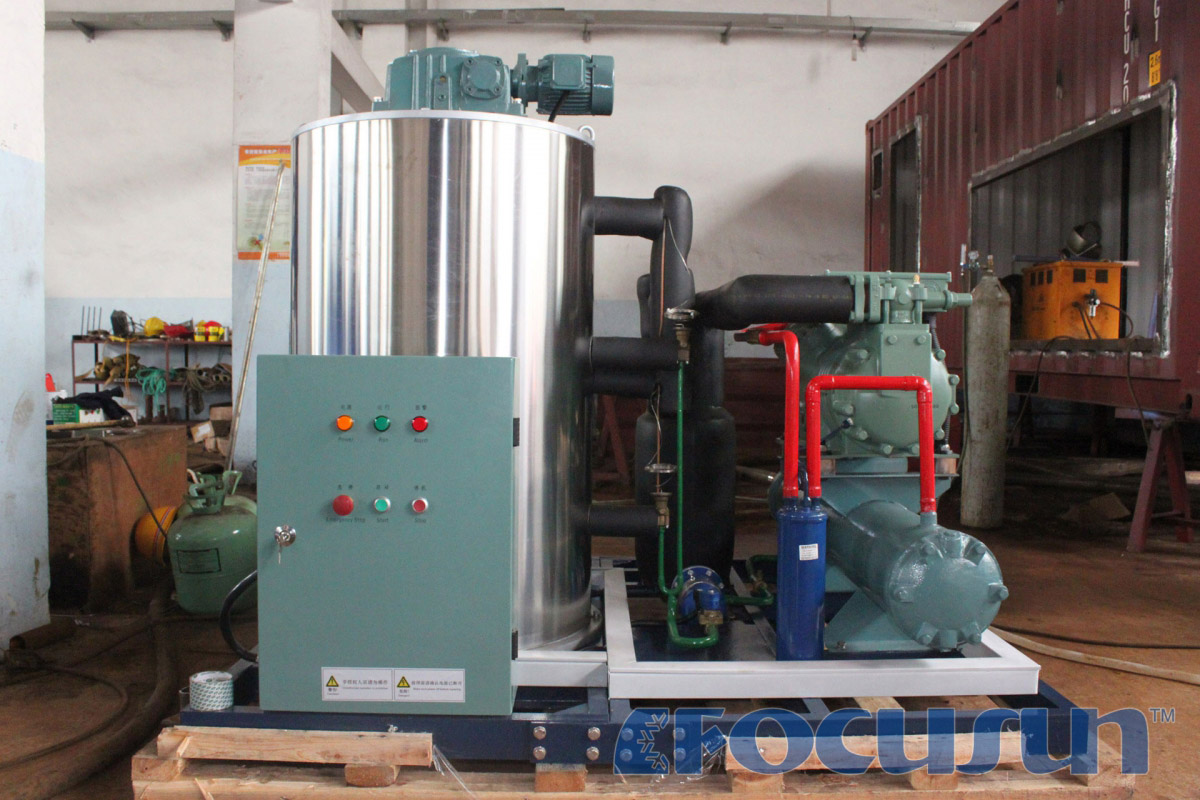

Focusun 4T Marine seawater flake ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：4T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Water source：sea water
Flake ice feature：Salt content is higher than fresh water flake ice machine.
Application：Marine vessel operations, marine ice making operations, large-scale offshore fishing industry
Feature：
Directly use sea water making ice, use special piping materials and compressor design；
Overcome seawater corrosion, ship pitching and rolling；
Overall installation, compact structure, easy to use and transport on board.
Technical parameter：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 4000 | |
| Cooling way | Seawater cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 22.8 | |
| Operating power | Kw | 13.04 | |
| Compressor COP/EER | Kw/kw | 1.75 | |
| Horse power | Hp | 25 | |
| Operating power | Total running power | Kw | 14.94 |
| Installment power | Kw | 18 | |
| Operating power of reducer | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.03 | |
| Cooling water pump | Kw | 1.5 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×900×1200 |
| Size of water feeding pipe | 1/2" | ||
| Size of ice outlet | mm | Φ520 | |
| Weight of unit | Operating weight of flake ice machine | Kg | 780 |
| Water supply pressure requirement | Bar | 1 | |
