Focusun 10T Containerized direct block ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：10T
Ice weight：25，50kg
Voltage：380V/3P/50hz
Electrical consumption：63KWH/T
Cooling way：air cooling/water cooling/evaporative cooling
Refrigerant：R22/R404a

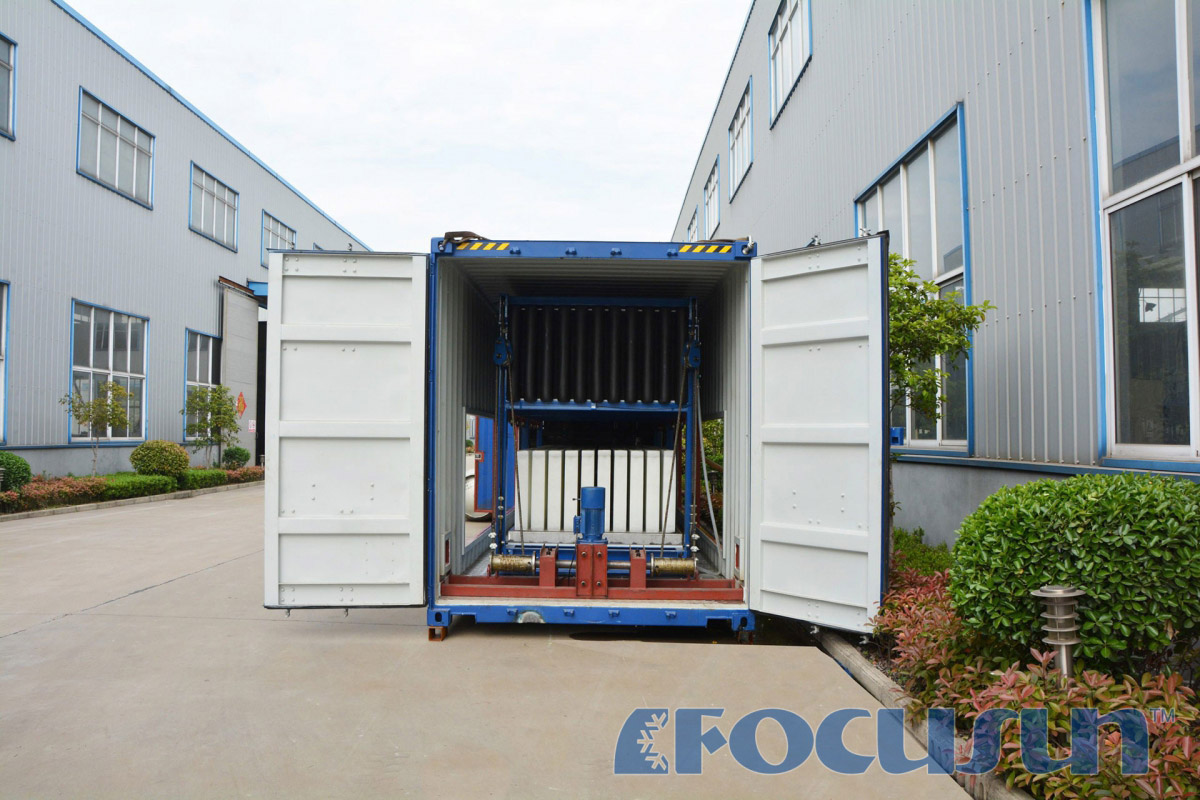

Containerized style：40ft
Features：be edible, meet food standards
Features
The inside and water contacting part of the pool is made of aluminum. It does not rust.
Hot fluoride deicing, more energy efficient, low power consumption, only need 25 minutes for ice doffing.
Automatic ice making and deicing process, reduce labor costs, save time and effort.
Easy to install, convenient to move, there is no need to build houses to place the machine and can be transported in trucks or ships.
Modular design, piping and circuit are connected completely and easy to operate, anyone who has no experience can operate easily.
New ISO transport containers, in line with CE certification, ISO9001-2008 quality system certification.
| ITEM | UNIT | TECHNICAL PARAMETER | |
| Input power | voltage/phase/HZ | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Ice field | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Water Inlet temperature | ℃ | 20 | |
| Running power | Total running power | kw | 39.83 |
| Installed power | kw | 50 | |
| Cooling tower fan | kw | 1.1 | |
| Water cooling pump | kw | 2.2 | |
| Water cooling pump power | kw | 0.55 | |
| Compressor | Manufacture | Bitzer | |
| Refrigerating capacity | kw | 86.6 | |
| Running power | kw | 35.98 | |
| Compressor COP/EER | kw | 2.41 | |
| Horsepower | Kw/kw | 25×2sets | |
| Working time | Ice making time | hour（h) | 7.5 |
| Ice doffing time | hour（h） | 0.5 | |
| Outline size | Block ice specifications | Kg/block | 50 |
| Block ice machine outline size | (length×width×height)(mm) | 480×160×700 | |
| Machine modular outline size | (length×width×height)(mm) | 1800×1000×1450 | |
| Evaporator module quantity | 2 pieces | ||
| Evaporator module outline size | (length×width×height)(mm) | 4800×1000×2200 | |
| Cooling tower outline size | （external diameter×height）（mm） | Ф2000×2410 | |
| Dimensions of water supply pipe cooling tower | 3/4part（3/4"） | ||
| Cooling water pipe size | 2-1/2inch（2-1/2"） | ||
| Inlet pipe size of ice machine | 1-1/4inch（1-1/4"） | ||
| Running weight | Machine unit | kg | 1680 |
| Evaporator | kg | 2860 | |
| Running weight | Cooling tower | kg | 670 |
| Water pressure requirements | Bar | 1 | |
