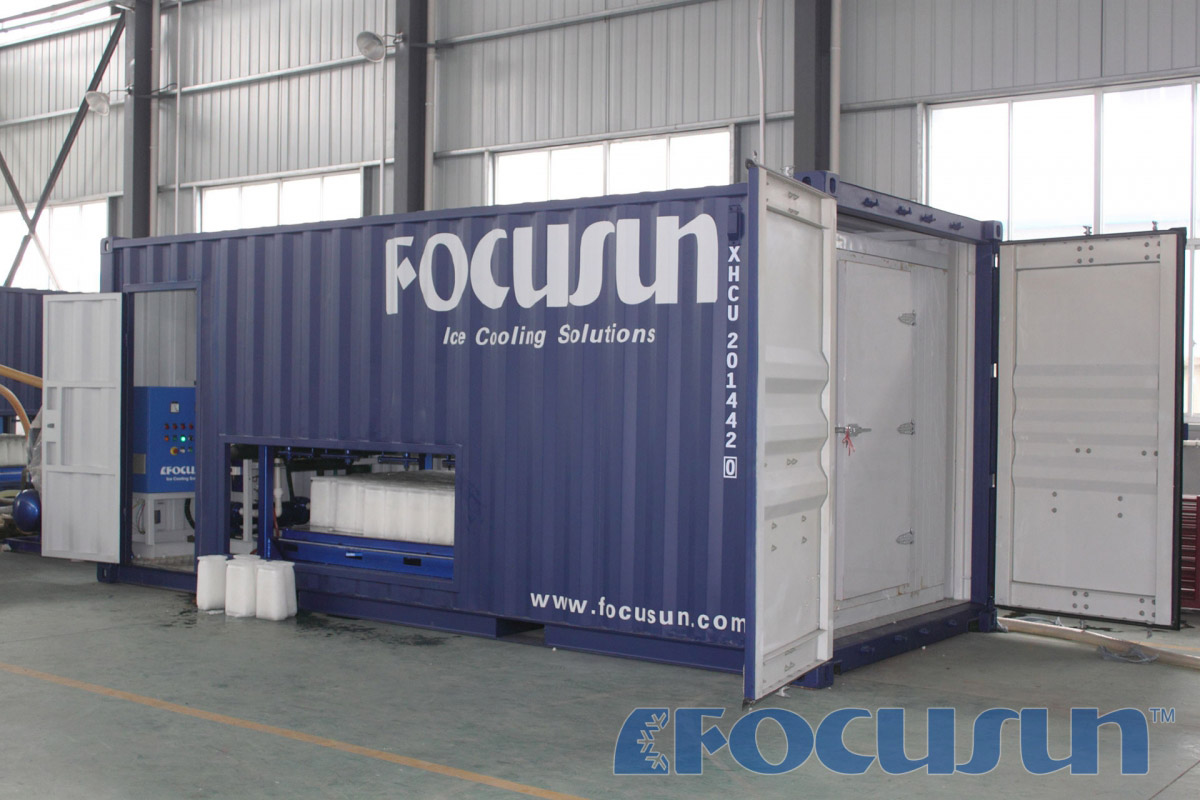

Focusun 1T Containerized direct block ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：1T
Ice weight：5，10kg
Voltage：380V/3P/50hz
Electrical consumption：67KWH/T
Cooling way：air cooling/water cooling
Refrigerant：R22/R404a
Containerized style：20ft
Features：be edible, meet food standards
Features

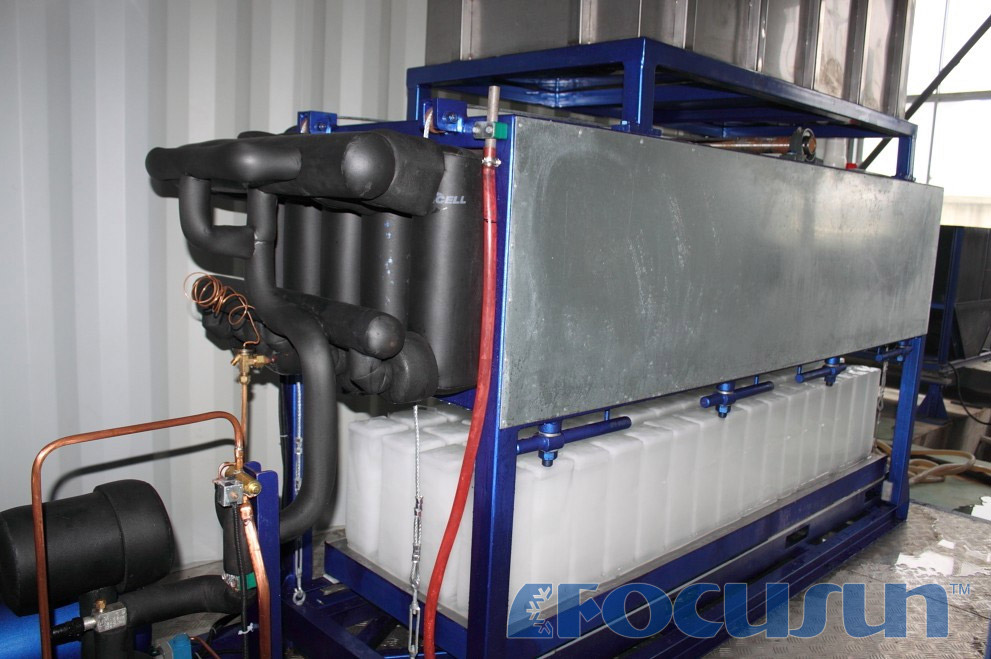

The inside and water contacting part of the pool is made of aluminum. It does not rust.
Hot fluoride deicing, more energy efficient, low power consumption, only need 25 minutes for ice doffing.
Automatic ice making and deicing process, reduce labor costs, save time and effort.
Easy to install, convenient to move, there is no need to build houses to place the machine and can be transported in trucks or ships.
Modular design, piping and circuit are connected completely and easy to operate, anyone who has no experience can operate easily.
New ISO transport containers, in line with CE certification, ISO9001-2008 quality system certification.
| ITEM | UNIT | TECHNICAL PARAMETER | |
| Input power | voltage/phase/HZ | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Ice field | Kg/day | 1080 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water Inlet temperature | ℃ | 20 | |
| Running power | Total running power | kw | 4.85 |
| Total installed power | kw | 6 | |
| Cooling water pump running power | kw | 0.12 | |
| Compressor | Manufacture | Bitzer | |
| Refrigerating capacity | kw | 7.86 | |
| Running power | kw | 3.83 | |
| Compressor COP/EER | Kw/kw | 2.05 | |
| Horsepower | Hp | 6 | |
| Condenser | Fan power | kw | 0.9 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | hour（h） | 7.5 |
| Ice doffing time | hour（h） | 0.5 | |
| Outline size | Block ice specifications | Kg/block | 20 |
| Block ice outline size | (length×width×height)(mm) | 245×125×700 | |
| Block ice machine outline size | (length×width×height)(mm) | 1800×1200×2000 | |
| Dimensions of water supply pipe cooling tower | 3/4part（3/4"） | ||
| Block ice machine running weight | kg | 960 | |
| Water pressure requirements | Bar | 1 | |
