Tube Ice Machine
Focusun aims to continue strengthening its leading position as a major global supplier of refrigeration technology and cooling system in the refrigeration industry by providing the best and quality performing machines at cost-effective prices.
SMALL TUBE ICE MACHINE FIT-10
Description

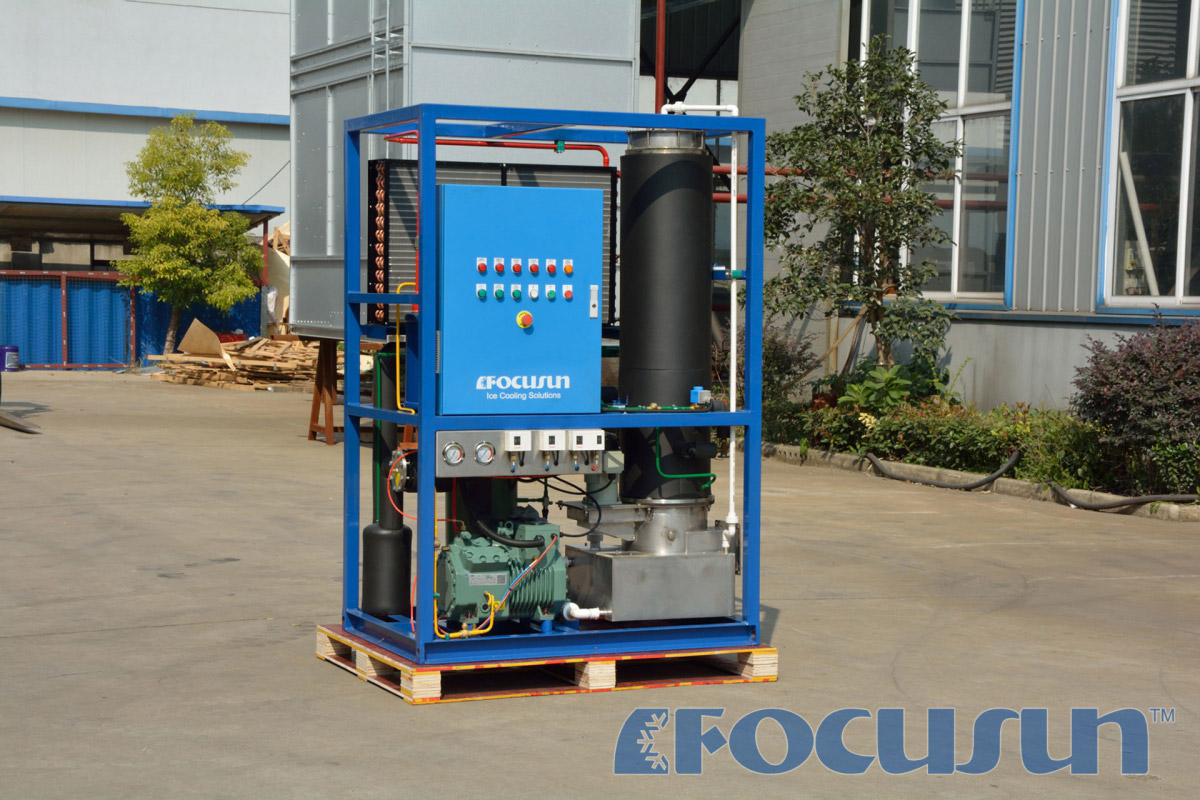

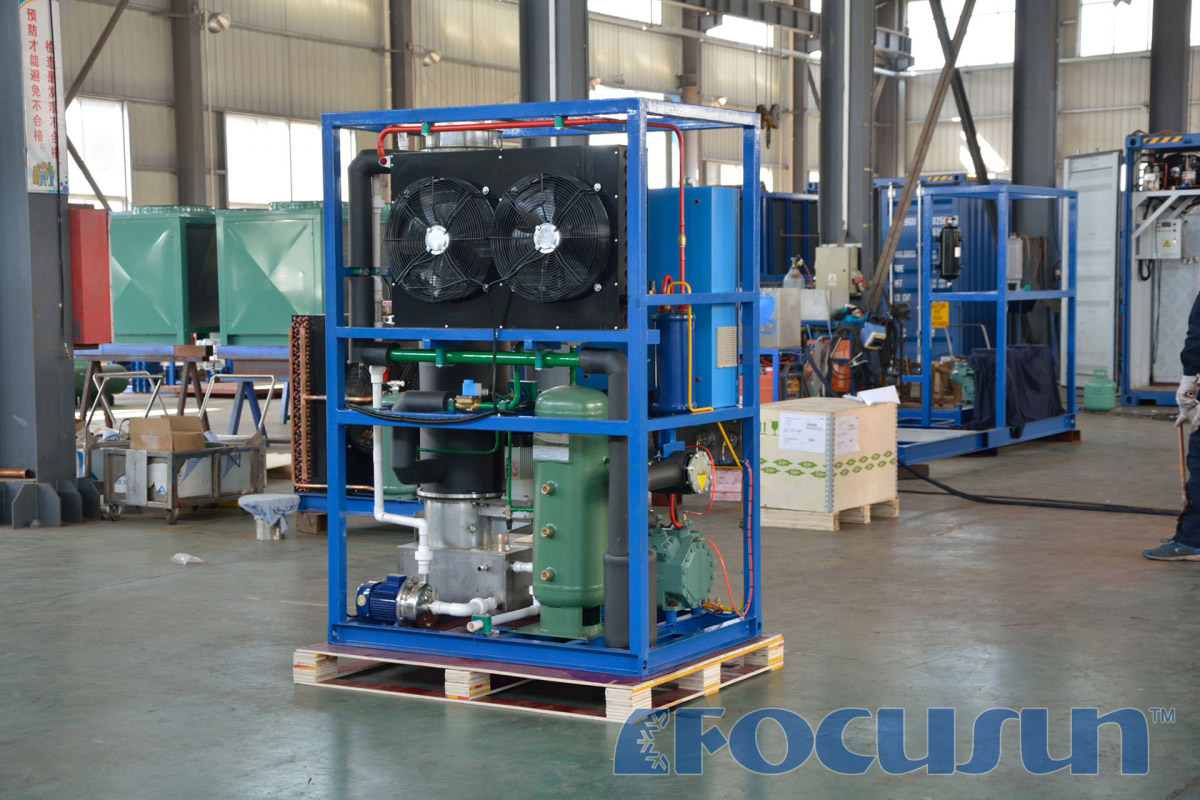

Focusun 1T Tube ice machine

Welcome inquiry:+86 021 51089946

Description of product:

Daily capacity:1T

Voltage:380V/3P/50hz

Cooling way:air cooling/water cooling

Refrigerant:R22/R404a

Tube ice size:21,28,34mm

Tube ice features:Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.

Application: Daily eating, keeping vegetable and seafood fresh, laboratory and medical applications, etc.

Features:

Mature technology: 80 years’ ice making experience, processed and forged by German technology.

Pure ice: World first Pre-Purify water purification patented technology, throgh the filtration of the income water, the ice is perfectly made which reached the standard of the WQA(American water quality association).

Perfect design: All equipments are made of 3D simulation assembly,compact structure,which makes it humanized to operate and maintain.

Safe, Hygeian: The materials of the evaporator are all process by SUS304,PE, alluminum alloy and etc. By using over-rounded design, there is no blind spot inside the machine through cleaning, which meets the health requirements.

High efficiency: Special alloyed machine combined with unique heat treatment process makes the evaporator has the best thermal performance.

Technical parameters:

SubjectUnitTechnical parameter
Power supplyVoltage/Phase/Frequency380V/3P/50Hz
Refrigerant/R22 or R404A
CapacityKg/day1000
TemperatureAmbient temperature35
Waterinlet temperature20
Operating powerTotal running powerKw4.74
Installment powerKw6
Operating power of cutterKw0.37
Operating power of cold water pumpKw0.55
CompressorManufacturer
Bitzer
Refrigeration capacityKw7.75
Operating powerKw3.12
Compressor COP/EERKw/kw2.49
Horse powerHp4
CondenserFan powerKw0.7
Cooling way
Air cooling
DimensionSize of ice maker(L×W×H)(mm)1400×800×1800
Size of condenser(L×W×H)(mm)1200×400×750
Size of water feeding pipe
1/2"
Weight of unitOperating weight of tube ice makerKg780
Operating weight of condenserKg48
Water supply pressure requirementBar1
