Focusun 60T Slurry ice machine
Welcome inquiry：+86 021 51089946
Description of product：
Daily capacity：60T
Voltage：380V/3P/50hz
Cooling way：air cooling/water cooling/evaporative cooling
Refrigerant：R22/R404a/R507
Ice making medium：brine/sea water

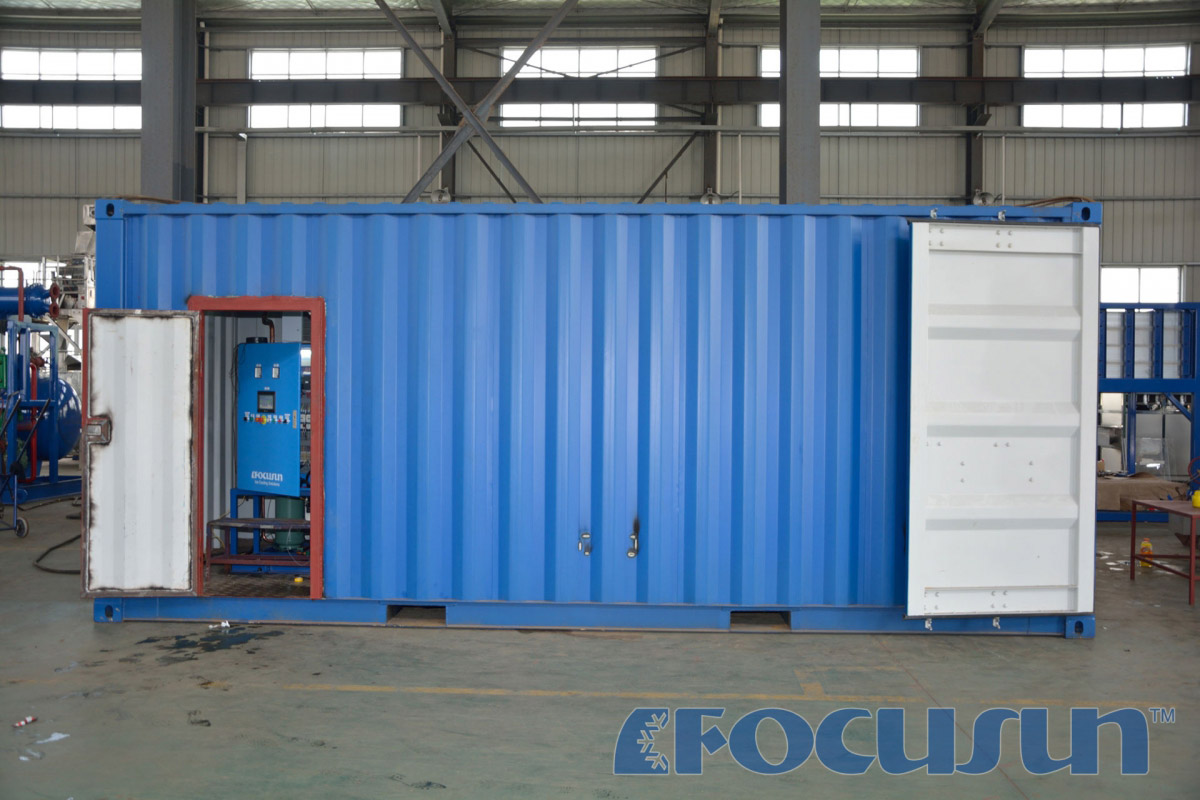

Container：40ft
Slurry ice feature：Semi-liquid form, extremely controllable, 100% encase the object to be cooled
Application area: Seafood, aquatic product preservation, fishing, supermarket ice, food processing industry
Features：
Use stainless steel 316in all contact areas which meets all food processing standards；
Low brine concentration ice making（freshwater ice making minimum salt 3.2%）；
360 degree compact package of cooling bodies without dead ends, instant cooling evenly；
Salt water or ice water can be used directly. Apply to any working condition.
Technical parameters：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A or R507 | ||
| Capacity | Kg/day | 60000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 33 |
| Waterinlet temperature | ℃ | 25 | |
| Compressor | Manufacturer | GRASSO | |
| Refrigeration capacity | Kw | 350 | |
| Total running power | Kw | 195 | |
| Compressor COP/EER | Kw/kw | 1.8 | |
| Horse power | Hp | 350 | |
| Operating power | Total running power | Kw | 214.9 |
| Installment power | Kw | 280 | |
| Operating power of reducer | Kw | 3.7 | |
| Operating power of cold water pump | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 11 | |
| Fan of cooling tower | Kw | 3.7 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit: 3500×2200×1800 |
| Evaporator: 3000×2500×4500 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ3770×3490 | |
| Size of water feeding pipes of cooling tower | 1" | ||
| Size of cooling water pipes | 6" | ||
| Size of water feeding pipes of cooling tower | 1" | ||
| Size of ice outlet | mm | Φ2160 | |
| Weight of unit | Operating weight of slurry ice machine | Kg | Unit: 5300 |
| Evaporator: 6500 | |||
| Operating weight of cooling tower | Kg | 3640 | |
| Water supply pressure requirement | Bar | 3.5 | |
